Description

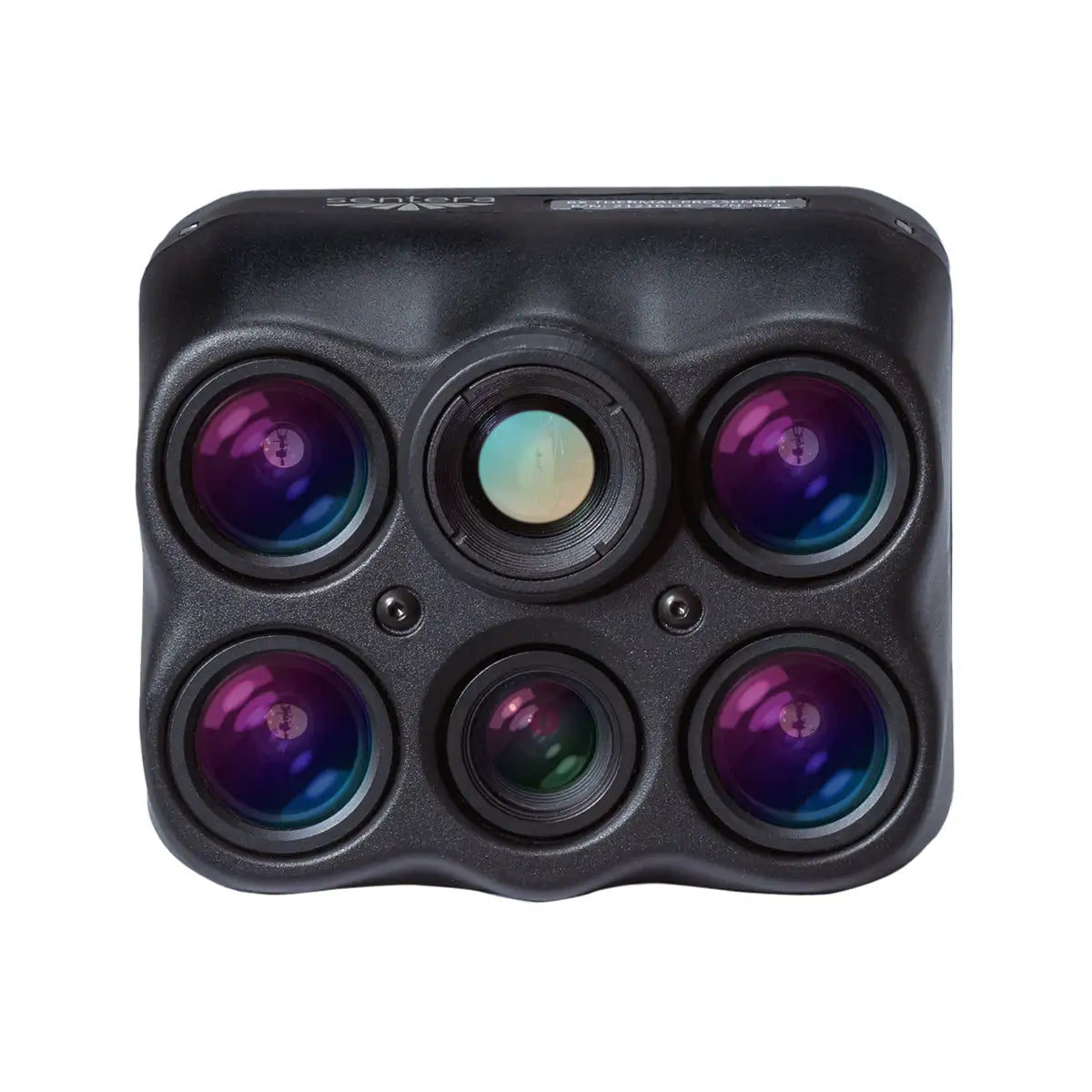

Sentera 6X Thermal Pro Sensor Kit for Matrice 300 / Matrice 350 / Matrice 400: Integrated multisensor analytics for DJI Enterprise operations
The Sentera 6X Thermal Pro Sensor Kit combines multispectral, RGB, and radiometric thermal sensing into a single payload designed for DJI Enterprise aircraft. Featuring four global-shutter multispectral sensors, a 20-megapixel RGB camera, and a FLIR Boson 640R thermal imager, the system captures synchronized datasets optimized for analytics-driven missions. With direct DJI Skyport V2 integration and onboard SSD storage, the 6X Thermal Pro streamlines data acquisition for agricultural, environmental, and inspection workflows.
Integrated multisensor imaging features
- Four multispectral cameras capture green, red, red edge, and NIR bands
- Global-shutter design eliminates motion distortion during flight
- 20 MP RGB sensor supports detailed visual mapping tasks
- Radiometric thermal sensor captures calibrated temperature measurements
- Shutterless thermal imaging supports continuous temperature analysis
- Synchronized capture ensures spatial alignment across datasets
- Incident light sensor enables reflectance-corrected outputs
- 12-bit multispectral and 16-bit thermal data formats supported
Reliable data capture for analytical workflows
The 6X Thermal Pro emphasizes data quality and consistency for professional analysis. Synchronized capture across multispectral, RGB, and thermal sensors ensures reliable alignment for downstream processing. Integrated PPS timing and full metadata tagging support accurate geospatial analysis. High-bit-depth outputs preserve data fidelity, enabling vegetation indices, thermal modeling, and environmental analytics without additional calibration steps.
Efficient deployment on DJI platforms
The payload connects directly via the DJI Skyport V2 gimbal, enabling plug-and-play integration on the Matrice 400 and seamless operation on the Matrice 300 RTK and Matrice 350 RTK. Internal 512 GB SSD storage supports extended missions without media swaps, while typical power consumption of 15 W preserves flight endurance. These characteristics allow operators to capture comprehensive datasets efficiently within a single mission.
Aircraft compatibility and integration details
- Compatible with DJI Matrice 300 RTK
- Compatible with DJI Matrice 350 RTK
- Compatible with DJI Matrice 400 series
- Direct DJI Skyport V2 gimbal integration
- Plug-and-play operation on Matrice 400 aircraft
- Supports PPS-based synchronization for RTK workflows
Operational use cases
- Precision agriculture: monitor crop health and stress patterns
- Thermal inspection: identify heat anomalies and hotspots
- Water management: analyze evaporation and moisture conditions
- Environmental monitoring: assess vegetation and land cover
- Fire detection: locate active flames and heat sources
- Soil analysis: support moisture and residue assessment
- Infrastructure review: combine RGB and thermal inspection data
- Research missions: generate synchronized analytical datasets
Built for enterprise deployment
The Sentera 6X Thermal Pro is designed to integrate cleanly into professional DJI Enterprise operations. Standardized Skyport connectivity, synchronized sensing, and calibrated outputs support scalable deployment across fleets. The system delivers consistent, high-quality data for organizations that rely on analytics-driven aerial intelligence.
Order from Dronefly today — the West Coast’s trusted source for Sentera and DJI Enterprise sensing solutions.
